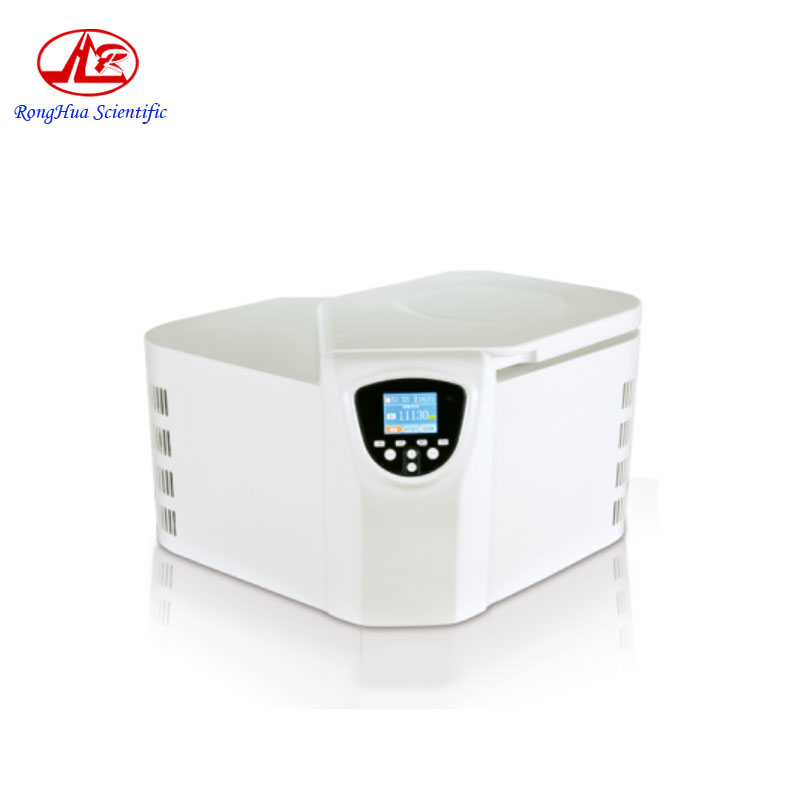

Laboratory Max. Capacity 4X100ml Centrifuge Machine 3H Series High Speed Refrigeration Centrifuge

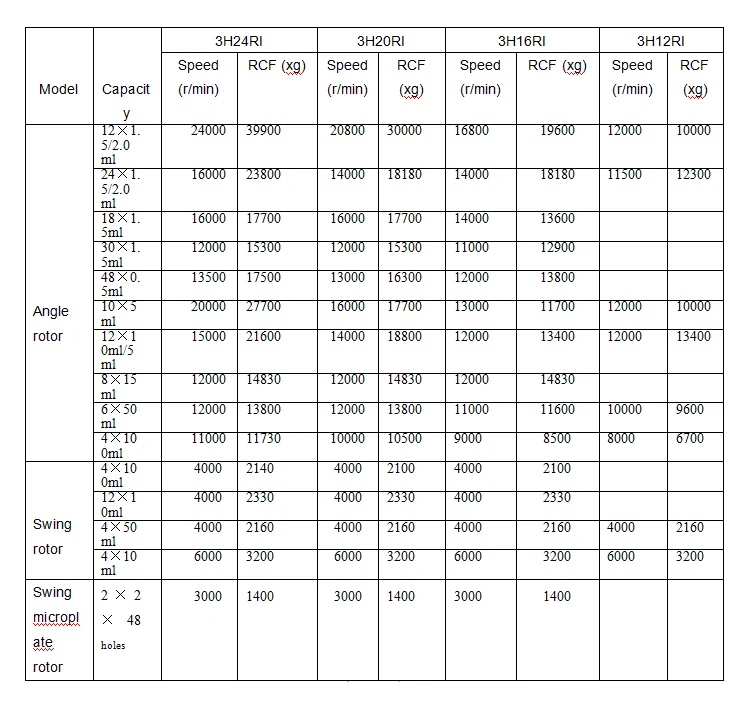

Specification:

Features:

Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchip’s dsPIC30F series and driven by a special driver module of FAIRCHILD’S FSBB30CH Series to ensure the circuit’s reliability.

With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly. With triple protective layers of steel bushings to achieve secure and reliable operation as well as personnel and equipment safety.

With TFT true-color LCD wide-screen touch monitor featured by intelligent control, easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones. With a motor gate lock mute mechanical & electrical integration.

Able to provide more than 100 kinds of operating modes for the user to programme and use freely. 10 levels for speed-up and speed-down control. Maximum rotation speed: 30000r/min,Maximum centrifugal force: 62400×g
