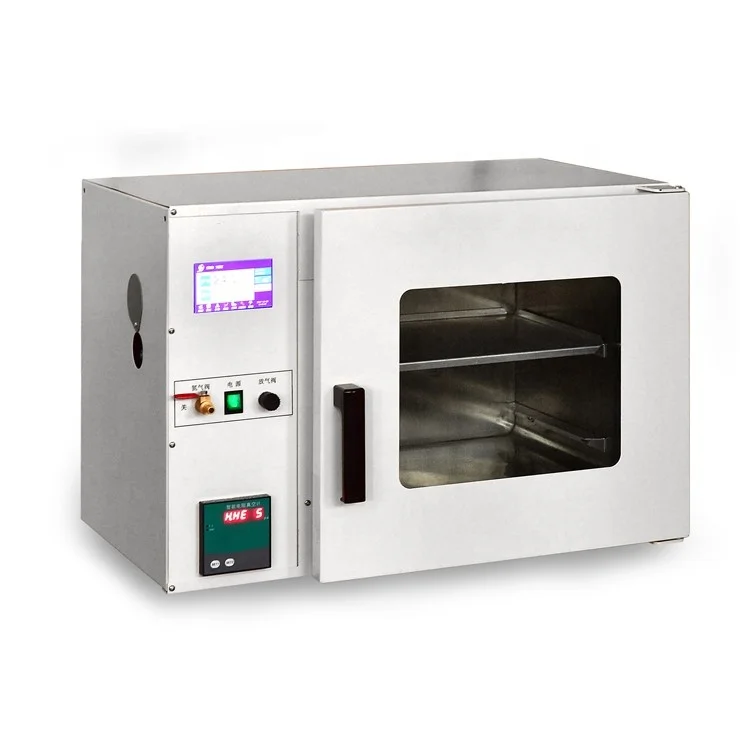

Precise drying box electric constant temperature experiment blast timing vacuumlaboratory oven

ModelDZF-6020DZF-6030DZF-6050DZF-6090DZF-6210
voltageAC 220V 50HZ
Temperature control rangeRT+10~200℃RT+10~200℃RT+10~250℃RT+10~250℃RT+10~250℃
Temperature resolution0.1℃
Temperature fluctuation±1℃
Power consumption<350W<550W<1400W<1200W<2000W
Degree of vacuum<133Pa
Vacuum gaugeMechanical pointer
Studio size (mm)300×300×275320×320×300415×370×345450×450×450560×590×640
Dimensions (mm)586×500×450610×485×485710×550×535635×645×1255732×775×1475
Vacuum pump (standard)///2XZ-42XZ-4
Load carrier (standard)11223
Studio materialsstainless steel(1Cr~18Ni9Ti)
 Features:
1. The square working room maximizes the effective area. Tempered, bullet-proof double-glazed doors make it easy to observe objects in the working room.
2. The tightness of the box door can be adjusted. The integrally formed silicone rubber door seal ring ensures high vacuum in the box.
3. Microcomputer intelligent controller with dual digital display for setting and measuring temperature and PID self-tuning function, accurate and reliable temperature control.
4. The heating power ratio can be adjusted arbitrarily to ensure that the low-end temperature control has no disadvantages of temperature overshoot.
5. It is especially suitable for drying easily decomposable materials with heat sensitivity and oxidation. It can also fill the working room with inert gas to quickly dry specific items. (Please contact the manufacturer if you need to fill with inert gas protection articles)
6. SMS alarm system can be installed. When the user is not on site and the equipment fails, the system collects the fault signal in time and sends it to the mobile phone of the designated receiver by SMS for the first time to ensure that the fault is eliminated in time and the experiment is resumed to avoid accidental loss. (Optional)

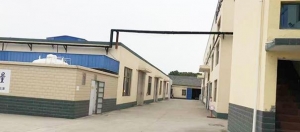

Company Profile
