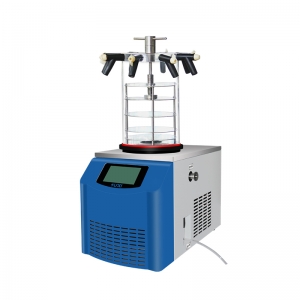

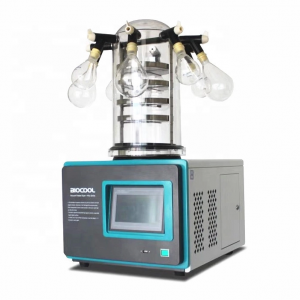

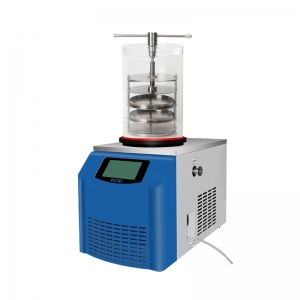

Imported inflatable valve bin No bonding vegetable vacuum freeze dryer industrial

ModelFD-1A-50

FD-1A-80

FD-1B-50

FD-1B-80

FD-1C-50

FD-1C-80

FD-1D-50

FD-1D-80

FD-1E-50

FD-1E-80

Sizenormal typePlug typeHanging bottle ordinary typeHanging bottle stopper typeT-manifold
Sample tray (mm)200*4180*3200*4180*3/
Cold trap size (mm)220*130220*130220*130220*130220*130
Lyophilized area0.120.080.120.08/
Cold trap temperature (no load)-55℃/-85℃-55℃/-85℃-55℃/-85℃-55℃/-85℃-55℃/-85℃
Vacuum degree (no load)<9Pa
Water catching capacity3L/4L
Lyophilization efficiency2L/24H
Compressor power7/8HP 2*2/3HP
Vacuum pump (domestic)2L/S
Power (220V / 50Hz)850W/1300W
Overall sizeW400*D600*H400 W300*D600*H950

Main feature:
1. Integrated drying bin. No bonding, high strength, no leakage.
2. International famous brand compressor with high efficiency, stability and low noise.
3. Cold trap pre-freezing function.
4. Patented deflector technology to shorten the drying cycle.
5. Special sample cold trap low temperature drying function.
6. The original imported inflation valve can be filled with nitrogen or inert gas for storage after drying.
7.Adopt international famous brand compressor, high efficiency and stability, low noise.
8. The world’s most cost-effective laboratory vacuum freeze dryer.
