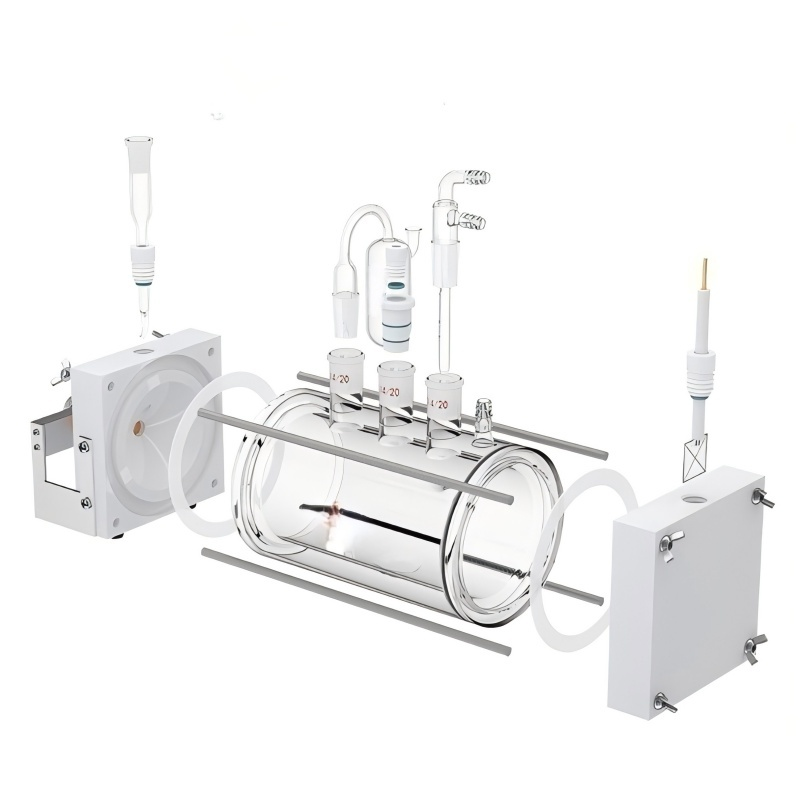

1. Pool material: borosilicate glass.
2. The working electrode sheet of the electrolytic cell is a sheet-shaped working electrode, which is simple and convenient to install, easy to disassemble and handle.
3. This electrolytic cell is suitable for corrosion testing of flat plate samples.
4. The side of the electrolytic cell has a circular hole with a fixed area of 1 square centimeter (the required size can be customized according to the requirements), and an O-ring that can be sealed. After the sample is placed at the O-ring of the circular hole, the sample being tested is pressed to achieve a sealing effect.
5. The electrolytic cell is equipped with an F-type intake air that can be ventilated up and down the liquid surface. The atmosphere is protected according to the experiment. When the experiment starts, please stop the ventilation under the liquid surface and only the ventilation on the liquid surface is retained.
6. The conductive link of the working electrode of the electrolytic cell is carried out using the principle of extruding the working sample of gold-plated copper sheets. The conductive copper sheets of gold-plated copper sheets have good corrosion resistance and aesthetics.
7. The electrolytic cell sample fixing bracket uses 316F stainless steel, which is both beautiful and corrosion-resistant.
8. In order to achieve better experimental diffusion effect, the electrolytic cell has added a placement position for stirring under the cylindrical cell body. Just place the stirring cell in the cell and place the tank body on a magnetic stirrer for magnetic stirring.
9. The electrolytic cell is divided into two forms: single layer and double layer. The double layer adds a constant temperature water bath function on the single layer basis. By continuously passing through the constant temperature water circulating the c-loop into the jacket layer of the electrolytic cell, the electrolytic cell achieves a constant temperature effect.
10. The material of the electrolytic cell cover: polytetrafluoroethylene. The size of the cover varies according to the volume of the electrolytic cell.
11. The auxiliary electrode (counter electrode) of the electrolytic cell is equipped with a 20*20 platinum mesh electrode.
12. The electrolytic cell is equipped with a standard silver chloride electrode R1060. .
13. In order to achieve better results in the experiment, the electrolytic cell is equipped with a special salt bridge for the reference electrode. If the corrosion test is required to avoid chloride ions, saturated potassium nitrate solution will be added to the salt bridge.
14. The electrolytic cell is equipped with an F-type intake air and a special liquid seal to prevent gas from flowing back when it exits from the electrolytic cell.
15. In order to better read the temperature of the cell body, the double-layer pool is equipped with a thermometer, and the single-layer pool needs to be purchased separately.
