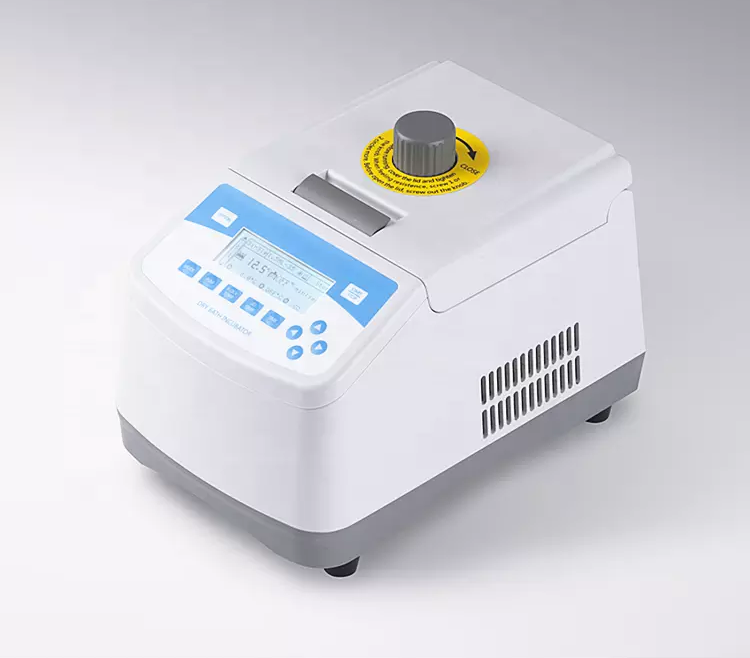

temperature control thermostat chemistry laboratory equipment mini Hot lid metal bath incubator machine

Performance
Module specificationsES series module
Temperature setting range0 ℃ ~ 100 ℃
Temperature control rangeRoom temperature + 5 ℃ ~ 100 ℃
Time setting1sec ~ 99h59min / ∞
Temperature control accuracy(at 37 ℃) ≤ ± 0.3 ℃
Display accuracy0.1 ℃
Temperature uniformity(at 37 ℃) ≤ ± 0.3 ℃
Heating time ≤12 minutes(25 ° C to 100 ° C)
Cooling time 1None
Cooling time 2None
Hot lid temperature setting rangeOFF ~ + 10 ℃
Temperature control accuracy of hot lid≤ ± 0.5 ℃
Heating lid heating time≤10 minutes (25 ° C to 100 ° C)
Store at 4 ° C at the end of the runNone
Multi-point cycle operationsupport (maximum number of cycles 99 times)
Multi-point operationsupport (up to 5 points)
Automatic warm-upsupport
Start automaticallysupport
Sample capacitysee module selection table
Input Power150W
 VoltageAC220V / 50-60HZ
Fuse250V 3A  5 × 20
Dimensions300 × 200 × 210mm
Weight4.0 Kg

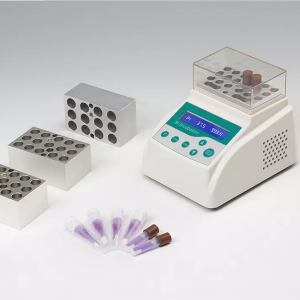

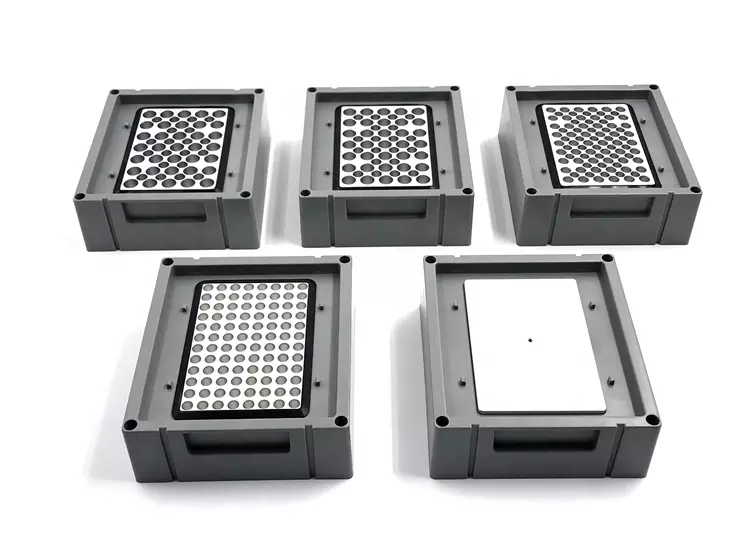

Module modelSample capacityTemperature control range
ES-0635 x 2.0mL centrifuge tubeRT + 5 ℃ ~ 100 ℃
ES-0735 x 1.5mL centrifuge tubeRT + 5 ℃ ~ 100 ℃
ES-0854 x 0.5mL centrifuge tubeRT + 5 ℃ ~ 100 ℃
ES-0996 x 0.2mL PCR standard plateRT + 5 ℃ ~ 100 ℃
ES-1096 x 0.2mL microtiter plateRT + 5 ℃ ~ 100 ℃

Features:

1. Simple and easy-to-use human-machine interface, which displays all running information and setting information in real time, which is convenient for users to observe the equipment running status;
2.Achieving a maximum of 99 hours and 59 minutes or 99 minutes and 59 seconds;
3. The temperature of the hot lid can be controlled;
4. Support multi-point running function, and the number of multi-point cycles can be configured;
5. Support automatic warm-up function;
6. Support auto-recovery function when power off;
7. Support the function of auto-running at boot;
8. Temperature calibration function;
9. Built-in software and hardware dual over-temperature protection device, more reliable to use;
10. Support module classification custom calibration function;
11. The host comes with an automatic module identification function.
