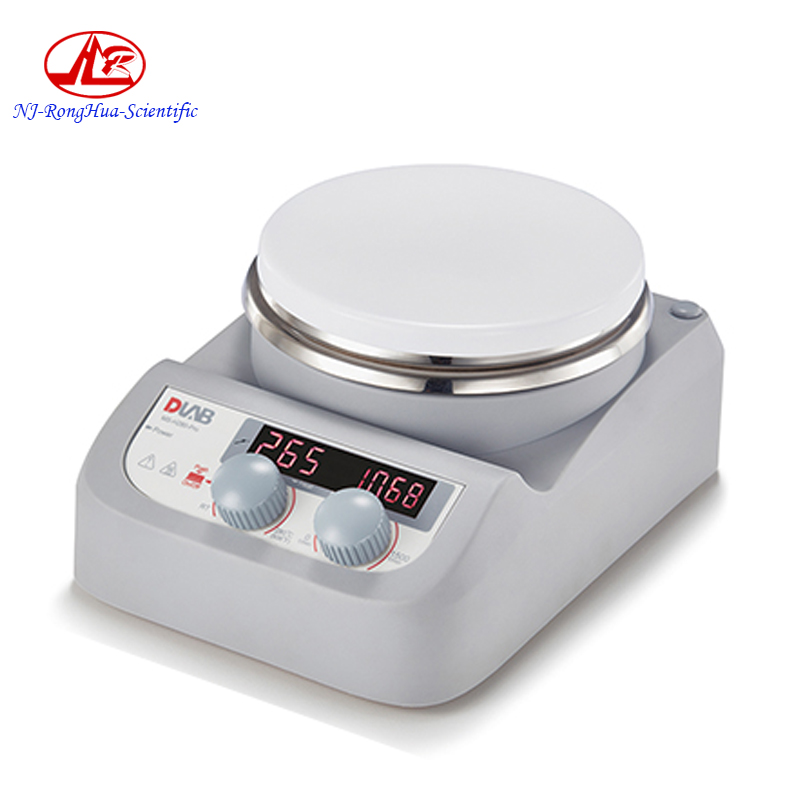

China DLAB LCD Digital Display Heating Mixing Magnetic Stirrer

Features

•   Digital temperature control with max. temperature up to 280°C
•   Digital speed control with max. speed up to 1500rpm
•  Stainless steel work plate with ceramic coating provides good chemical resistant performance
•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.5°C
•   LED display shows temperature and speed
•   The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off

Technical Parameter

SpecificationsMS-H280-Pro
Work plate Dimensionφ135mm(5 inch)
Work plate materialstainless steel cover  with ceramic
Motor typeBrushless DC motor
Motor rating input5W
Motor rating output3W
Power515W
Heating output500W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity[H2O]3L
Max. magnetic bar[length]50mm
Speed range200-1500rpm
Speed displayLED
Temperature displayLED
Speed display resolution±1rpm
Heating temperature rangeRoom temp.-280, increment 1°C
Control accuracy of work plate±1°C(<100°C)     ±1%(>100°C)
Over  heat Protection320°C
Temperature  display accuracy±1°C
External  temperature sensorPT1000 (accuracy ±0.5°C)
“Hot” warning50°C
Protection classIP21
Dimension [W x D x H]150×260×80mm
Weight1.8kg
Permissible ambient temperature and humidity5-40℃ 80%RH

Company Profile

certifications1

Packing & Shipping

Before shipment, we have a final inspect to check the products Normally we can ship the goods within 5-15 days if we have the stock. If your quantity is huge big or your requirements are different and spe cial, we need to communicate and decide the accurate shipping date

packing

FAQ

A:Yes. We offer free samples, including customized samples. You only need to pay the freight. Sample delivery date is within 1-          3days, customized sample is about 3-7days.

A:Yes. We have our strict evaluation criteria of quality on our partner factory, and we did complete and detailed market research          and priced competitively.

A:We accept T/T, Visa, MasterCard, E-checking, L/C, Western Union and more.Please choose your preferred payment method. 4.How to inspect the goods?

A:Products will be checked by our QC staff first , then our project manager. Client can come and check by themselves or third             party check is available.
