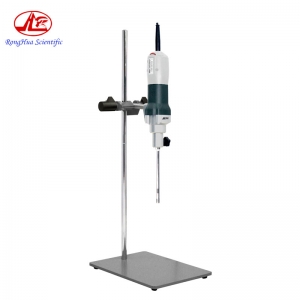

Good Quality Low Price High Shear Dispersing Emulsifier RH18 Series (Optional electronic display)

Technical Parameter:

Rated voltageAC220 V
Rated frequency50/60 Hz
Input power710 W
Output power430 W
Rated torque12.1 N.cm
Work modeS1 (Continuous)
Operating control modeSpeed control knob
Rotating speed adjustment range(idle running)13000~34000 rpm
Rotating speed control type6 gears
Overload protection functionyes
Safe shutdown functionyes
Peak torque of the stirring head12.0 N.cm
Stirring head materialSS 316
Stirring head specifications8G;10G ;12G ;18G;24G
Permissible ambient temperatureNot more than 40 ℃
Peimissible relative humidityNot more than 80 %
Size of the mixer(T×B×H)215×310×720 mm
Weight8 kg

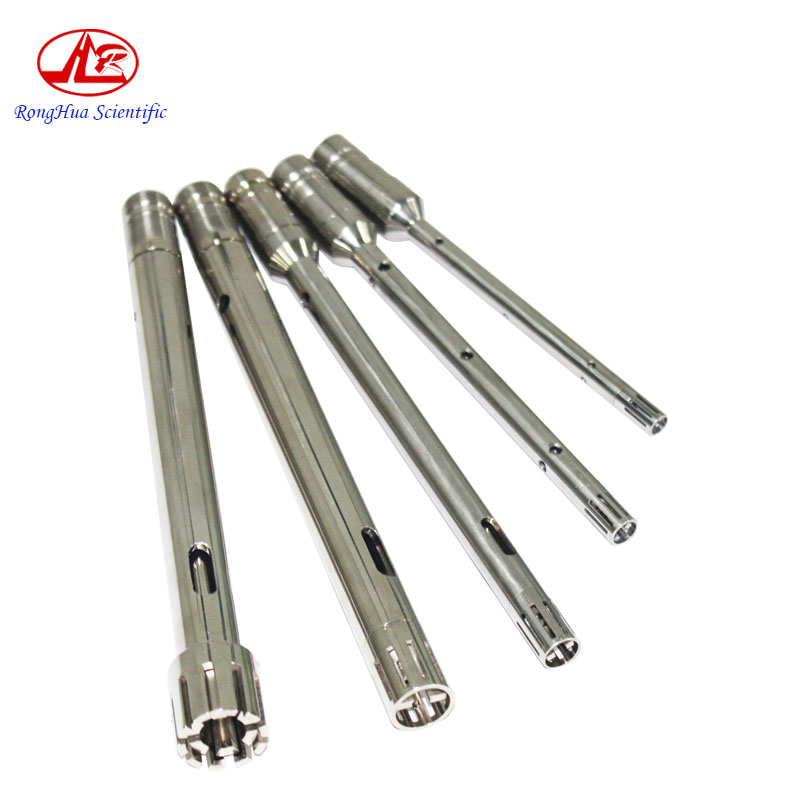

dispersing and emulsifying working head parameters:

Stirring head specifications

8

10

12

18

24

mixing capacity(H2O)ml

15~50

20~100

30~800

50~1500

80~5000

Max viscosity tolerated 0(mPa.s)

1000

1000

1000

2000

5000

Peak linear speed of the rotor(m/s)

10

11

12

15

18

Minimum height of the liquid immersed(mm)

15

25

35

45

50

Maxumum height of the liquid immersed(mm)

105

130

150

160

165

Stator diameter(mm)

8

10

12

18

24

Overall length(mm)

156

182

215

222

225

Max temperature tolerated(℃)

120

120

120

120

120

Stirring head material

SS 316

SS 316

SS 316

SS 316

SS 316

Bearing material

PTFE

PTFE

PTFE

PTFE

PTFE





Product information:

German original ultra-high-speed drive motor, modular structure, easy to operate, can be equipped with a variety of specifications of dispersed working head, to meet a variety of high-demand experiments, working head is removable, easy to replace, clean, sterilize and other work. No-load speed range: 13000-34000rpm. Working head material: 316L stainless steel. Note: Digital display is optional.

Company Profile

certifications1

Packing & Shipping

Before shipment, we have a final inspect to check the products Normally we can ship the goods within 5-15 days if we have the stock. If your quantity is huge big or your requirements are different and spe cial, we need to communicate and decide the accurate shipping date

packing

FAQ

A:Yes. We offer free samples, including customized samples. You only need to pay the freight. Sample delivery date is within 1-          3days, customized sample is about 3-7days.

A:Yes. We have our strict evaluation criteria of quality on our partner factory, and we did complete and detailed market research          and priced competitively.

A:We accept T/T, Visa, MasterCard, E-checking, L/C, Western Union and more.Please choose your preferred payment method. 4.How to inspect the goods?

A:Products will be checked by our QC staff first , then our project manager. Client can come and check by themselves or third             party check is available.
