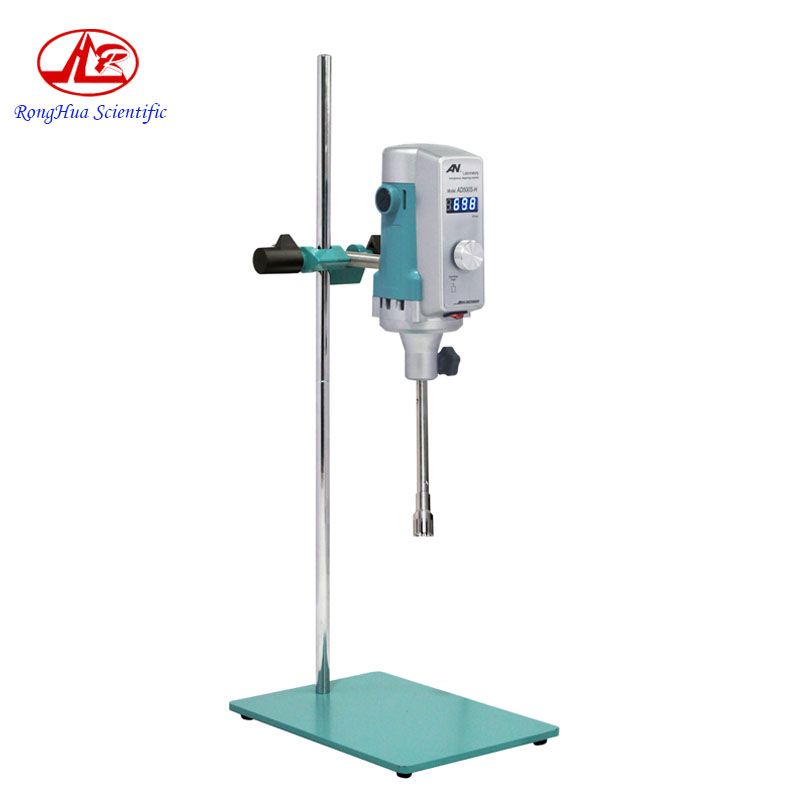

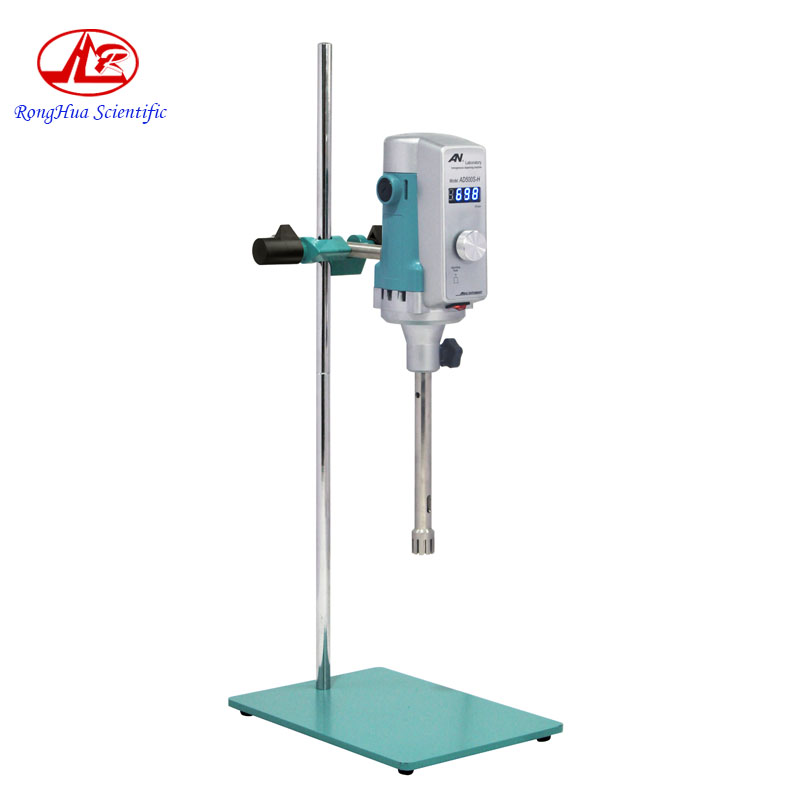

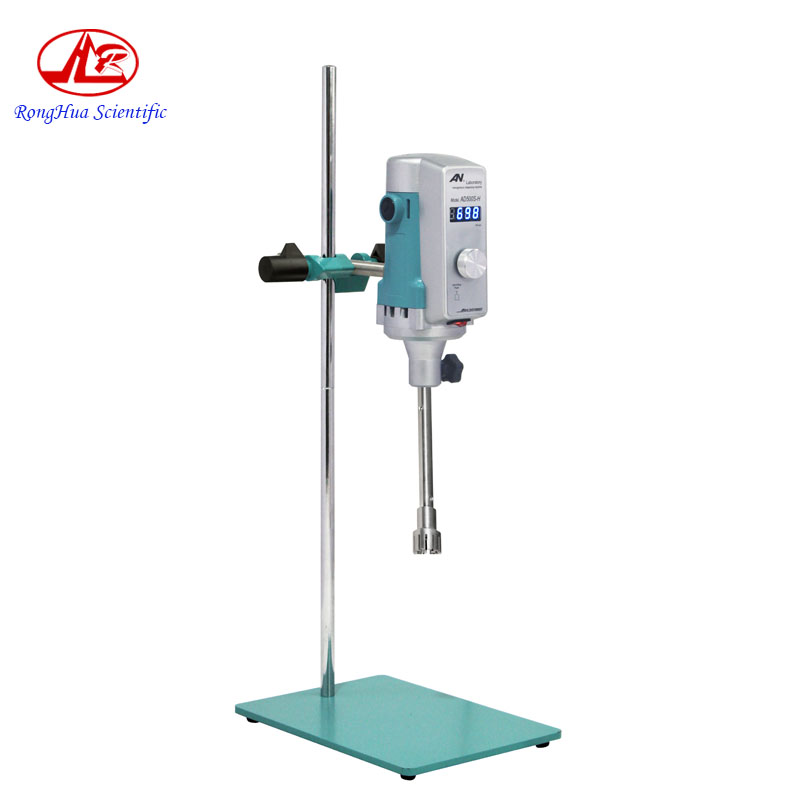

High-end Low Price RH500S-H Series High Shear Dispersing Emulsifier

Product information

It has overload protection function, speed memory function, can set speed in advance, and can be suspended at any time. Easy to operate, superior performance and low noise. The working head is removable and convenient for replacement, cleaning and sterilization. The fuselage is all made of high quality engineering plastics, which ensures the safety and reliability in use. No-load speed range: 2000-28000rpm

Host parameters:

Rated voltageAC220 V
Rated frequency50/60 Hz
Input power850 W
Output power500 W
Rated torque17.1 N.cm
Work modeS1 (Continuous)
Operating control modeSpeed control knob
Rotating speed adjustment range(idle running)2000~28000 rpm
Rotating speed control typestepless
Overload protection functionyes
Safe shutdown functionyes
Peak torque of the stirring head17.0 N.cm
Stirring head materialSS 316
Stirring head specifications12G ;18G;24G; 30G; 36G
Permissible ambient temperatureNot more than 40 ℃
Peimissible relative humidityNot more than 80 %
Size of the mixer(T×B×H)215×310×720 mm
Weight8.7 kg

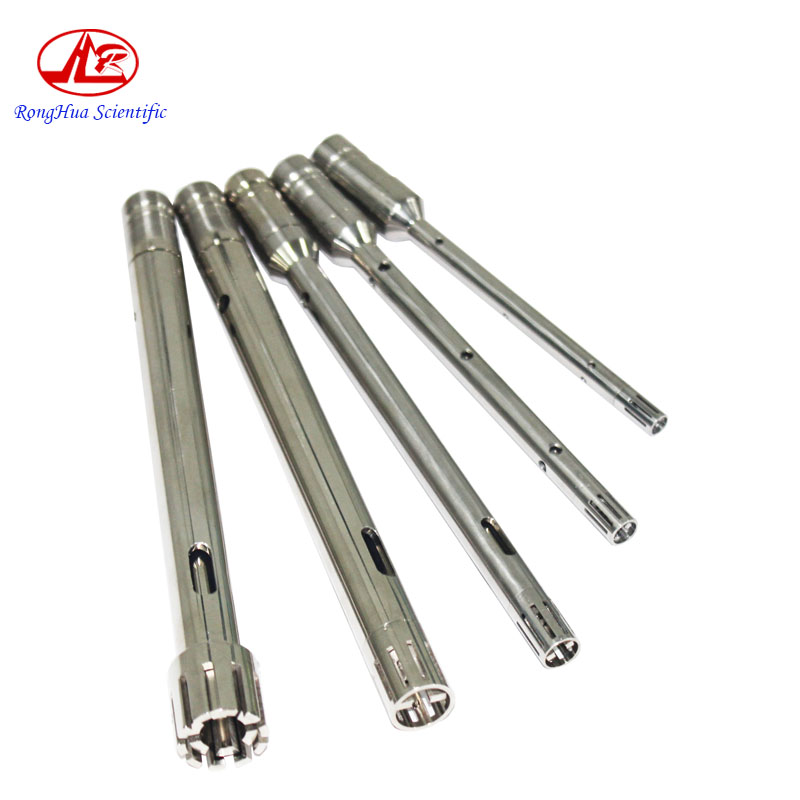

Dispersing and emulsifying working head parameters:

Stirring head specifications

12G

18G

24G

30G

36G

mixing capacity(H2O)ml

30~800

50~1500

80~5000

100~8000

150~13000

Max viscosity tolerated 0(mPa.s)

1000

2000

5000

6000

7000

Peak linear speed of the rotor(m/s)

12

15

18

22

26

Minimum height of the liquid immersed(mm)

35

45

50

60

65

Maxumum height of the liquid immersed(mm)

150

160

165

170

175

Stator diameter(mm)

12

18

24

30

36

Overall length(mm)

215

222

225

235

238

Max temperature tolerated(℃)

120

120

120

120

120

 Stirring head material

SS 316

SS 316

SS 316

SS 316

SS 316

 Bearing material

PTFE

PTFE

PTFE

PTFE

PTFE
