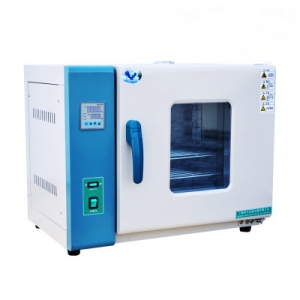

Hot air circulation drying electric blast constant temperature experiment blast timing oven laboratory oven

modelDHG-9013ADHG-9023ADHG-9053ADHG-9123ADHG-9203A
power supplyAC220V 50Hz
power500W850W1100W2050W2450W
Control rangeRT10-200℃/RT10-250℃
Temperature resolution0.1℃
Temperature uniformity±3%
Constant temperature fluctuation±1℃
shelf2
Internal dimensions(mm)250*550*250340*325*320420*395*350550*4508550600*550*600
Outside dimensions(mm)530*370*420620*440*490720*530*520840*580*730880*765*780
Timing range0-999min
manunal:
1. Pay attention to the compliance of the power supply voltage before use. During use, the grounding wire of the power outlet must be grounded in accordance with the rules.
2. When using electricity, do not touch the electrical parts on the left side of the box with your hands or wipe with a damp cloth and rinse with water. The power should be cut off during inspection.
3. The power cord should not be wrapped around metal objects, and it should not be placed in the low temperature or wet center to avoid leakage of rubber due to aging of rubber.
4. Don’t overcrowd the items in the box. Leave a space of natural convection in the atmosphere so that the humid atmosphere can decelerate and escape on the wind top.
5. The silver contacts of the temperature conditioner should be checked for fuzziness or unevenness during the time of use. If so, use fine gauze to sand the contacts before use, and often clean them with a clean cloth to make them in good contact. Cut off the power). Do not bump the metal pipes of the room temperature controller to avoid affecting the flexibility.
6. Do not put flammable materials in a dry box without explosion-proof installation.7. After each use, the power supply must be partially cut off, and the inside and outside of the box are often kept clean.
